Laser Diodes for Sensing, Metrology & Communications
10G HIGH SPEED LASER DIODES
  • 1310nm Fabry-Pérot (FP)
    Eblana's 1310 nm FP Laser delivers unrivalled 10 Gbps performance at affordable pricing. Its InAlGaAs composition provides for reliable, uncooled operation over a wide operating temperature range. Tight uniformity of key parameters ensures unsurpassed high volume manufacturing efficiencies.
    Technical Attributes
    1310 nm emission
    Multimode (Fabry-Pérot) spectrum
    10 Gbps operation
    Low threshold current
    Wide operating temperature range
    Available in Chip, TO-Can or TOSA
    ROHS compliant
    Applications
    10 GbE (Gigabit Ethernet)
    SDH STM-64
    SONET OC-192
    10G FC fiber channel
  • 1310 nm Discrete Mode (DM)
    Eblana's 1310 nm DM Laser delivers unrivalled 10 Gbps performance at affordable pricing compared to conventional DFB technology. Its strained quantum well InAlGaAs composition provides for reliable, mode-hop free, uncooled operation over a wide operating temperature range.
    Technical Attributes
    1310 nm emission
    Single wavelength (DFB-like) spectrum
    10 Gbps operation
    Low threshold current
    Wide operating temperature range
    Available in Chip, TO-Can or TOSA
    ROHS compliant
    Applications
    10 GbE (Gigabit Ethernet)
    SDH STM-64
    SONET OC-192
    10G FC fiber channel
2.5G LASER DIODES
  • 1310 nm Fabry-Pérot (FP)
    Eblana's 1310 nm 2.5G FP Laser is the 1310 FP of choice for mass market applications demanding high peformance without compromise to cost-down targets. The InAlGaAs composition of Eblana's 1310 FP provides for reliable, uncooled operation over a wide operating temperature range. Tight uniformity of key parameters ensures unsurpassed high volume manufacturing efficiencies.
    Technical Attributes
    1310 nm emission
    Multimode (Fabry-Pérot) spectrum
    2.5 Gbps operation
    Low threshold current
    Wide operating temperature range
    Available in Chip, TO-Can or TOSA
    ROHS compliant
    Applications
    SONET OC-48 / SDH STM-16
    Intra-office and inter-office links
    Fiber in the loop
    Private optical networks
    SAN 1GFC, 2GFC fiber channel
  • 1310 nm Discrete Mode (DM)
    When compared to conventional DFB laser technology, Eblana's 1310 DM delivers a high performance, single wavelength source at very competitive price points for mass market PON applications. Its strained quantum well InAlGaAs composition provides for reliable, mode-hop free, uncooled operation o
    Technical Attributes
    Technical Attributes
    1310 nm emission
    Single wavelength (DFB-like) spectrum
    2.5 Gbps operation
    Narrow spectral width (typ 800 kHz)
    Wide operating temperature range
    Available in Chip, TO-Can or TOSA
    ROHS compliant
    Applications
    GPON(ONU)
    GEPON(ONU)
    WDM-PON
  • 1550 nm Fabry-Pérot (FP)
    Eblana's 1550 nm 2.5G FP Laser is the preferred choice for deployment in mass market point-to-point optical communications applications. High peformance, and long term reliability are a given with this 1550 FP laser. Its InAlGaAs composition provides for reliable, uncooled operation over a wide operating temperature range. Tight uniformity of key parameters ensures unsurpassed high volume manufacturing efficiencies.
    Technical Attributes
    1550 nm emission
    Multimode (Fabry-Pérot) spectrum
    2.5 Gbps operation
    Low threshold current
    Wide operating temperature range
    Available in Chip, TO-Can or TOSA
    ROHS compliant
    Applications
    SONET OC-48 / SDH STM-16
    Fiber in the loop
    Intra-office and inter-office links
    Private optical networks
  • 1550 nm Discrete Mode (DM)
    Eblana's 1550 DM laser delivers a high performance, single wavelength source at very competitive price points for mass market fiber communications applications. Its strained quantum well InAlGaAs composition provides for reliable, mode-hop free, uncooled operation over a wide operating temperature range. When compared to conventional DFB laser technology, Eblana's 1550 DM offers compelling performance and cost advantages.
    Technical Attributes
    1550 nm emission
    Single wavelength (DFB-like) spectrum
    2.5 Gbps operation
    Narrow spectral width (typ 800 kHz)
    Wide operating temperature range
    Available in Chip, TO-Can or TOSA
    ROHS compliant
    Applications
    Long Reach SONET OC-48 / SDH STM-16
    ATM switches and routers
    Metro edge switching
COHERENT AND LONG HAUL COMMUNICATIONS
  • 1550nm Narrow Line Width (NLW)
    Eblana's Narrow Linewidth (NLW) series lasers set the standard for monolithic, ultra narrow linewidth laser emission at 1550 nm. These products are available in 100 kHz, 200 kHz and 400 kHz versions and may be supplied with SMF or PM fiber depending on requirements. Each laser module is supplied with a full set of characterization data.
    Technical Attributes
    Linewidth as narrow as 100 kHz.
    Stable single cavity without external cavity or feedback.
    Tunable by either temperature or current
    Very low mode partition noise
    Low RIN - 160 dB/Hz
    Low sensitivity to environment and mechanical vibration
    Applications
    Coherent communications systems
    LIDAR
    Optical test and instrumentation
    Interferometric fiber optic sensors
    RF and microwave photonics

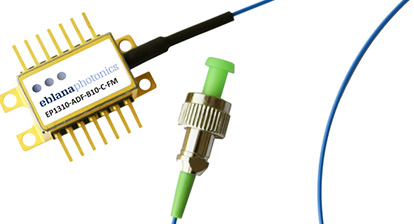

  • 1310 nm ADF
    Eblana's 1310nm ADF series laser is a high performance single wavelength source, available in a 14-pin butterfly package with PM fibre pigtail. The frequency response and linearity of this laser makes it an excellent choice for long reach analog transmission systems such as CATV. Each laser module is supplied with a full set of characterization data.
    Technical Attributes
    Up to 30mW output power.
    Stable single cavity without external cavity or feedback.
    Tunable by either temperature or current
    High Linearity
    Low RIN - 155 dB/Hz
    Applications
    Analog transmission systems
    CATV
    GSM/CDMA repeater
    Optical sensing
    Silicon Photonics test-bed
  • 1550 nm ADF
    Eblana's 1550nm ADF series laser is a high performance, high power single wavelength source, available in a 14-pin butterfly package with PM fibre pigtail. The high output power and low RIN and linewidth of this laser make it perfect for DWDM applications in combination with an external modulator. Each laser module is supplied with a full set of characterization data.
    Technical Attributes
    Up to 60 mW output power.
    Linewidth < 1 MHz.
    Stable single cavity without external cavity or feedback.
    Tunable by either temperature or current
    Low RIN - 160 dB/Hz
    Applications
    Coherent communications systems
    DWDM systems
    Optical test and instrumentation
    Interferometric fiber optic sensors
    RF and microwave photonics
Why Choose Eblana

    ● Delivering high performance lasers for over a decade.

    ● Single Mode Laser Diodes from 689 to 2350 nm.

    ● Discrete Mode (DM) technology enables new & exciting mass market applications.

    ● Expertise always on hand to assist in custom laser design.
