Laser Diodes for Sensing, Metrology & Communications
EP1580-0-DM - CO, CO2 & H2S
Eblana's EP1580-DM series is designed for Carbon Monoxide, Carbon Dioxide, & Hydrogen Sulfide detection using 1580 nm absorption lines. This laser is built on Eblana's Discrete Mode technology platform and delivers stable, precise lasing performance at 1580 nm for a wide range of Carbon Monoxide, Carbon Dioxide, & Hydrogen Sulfide detection applications.
  • Packaging options: 14-Pin Butterfly (w/ iso), TO39 (w/ TEC), TO56, DX-1 Module (driver & TEC electronics)
  • Popular wavelengths in this region: 1570 nm, 1572 nm, 1580 nm
  • Precise, stable spectral performance
  • Monolithic design without external cavity
  • Tunable by either temperature or current
  • Low sensitivity to mechanical vibration
  • Spectrum

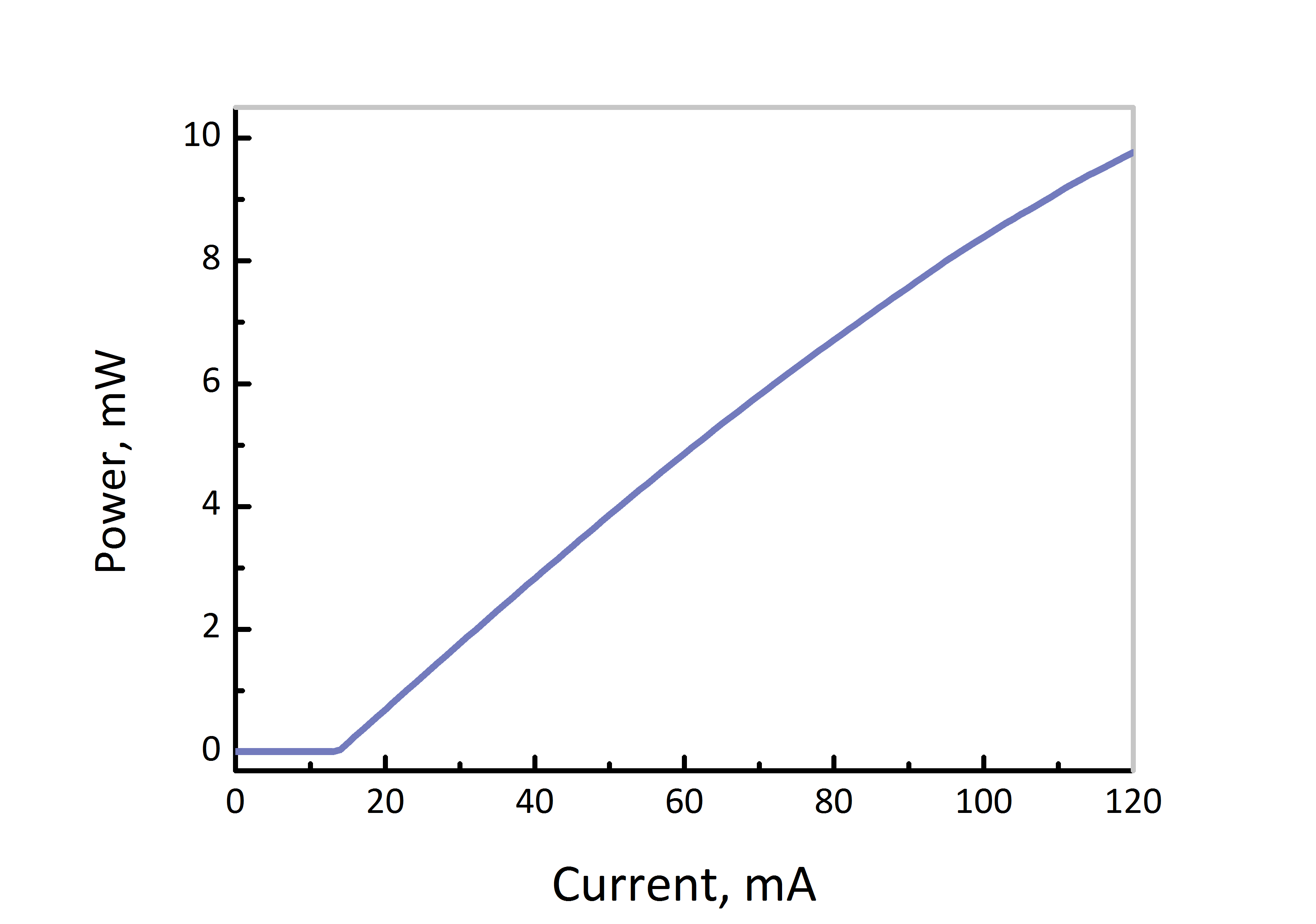

  • L.I.
KEY PARAMETERS

The EP1580-0-DM product series delivers precise lasing emmision at 1580 nm in a range of packaging options.

  • λ = 1580 nm
  • SMSR = 40d B (typ)
  • Power in fiber = 6 mW
  • λ Tuning = 2 nm (typ)
  • Optical Isolation > 40 dB
  • Linewidth < 1 MHz



CONTACT US FOR THE FULL DATASHEET
